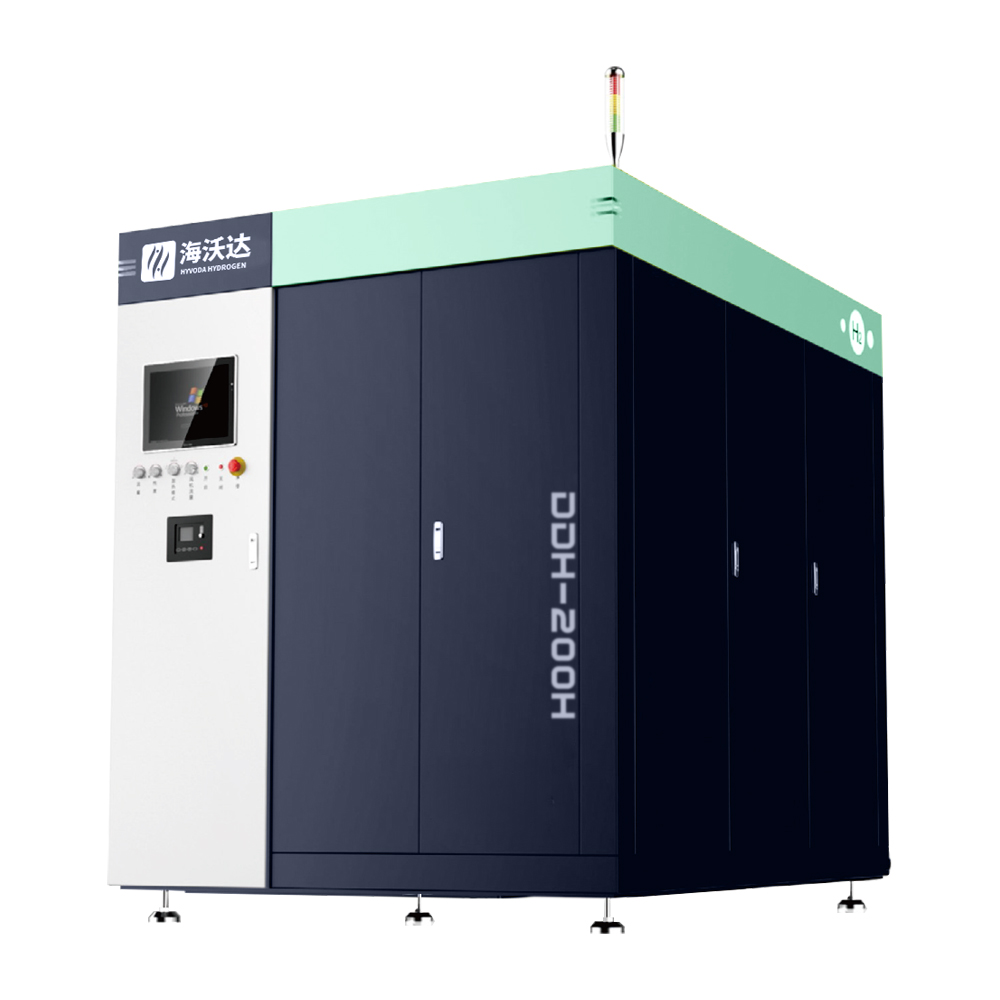

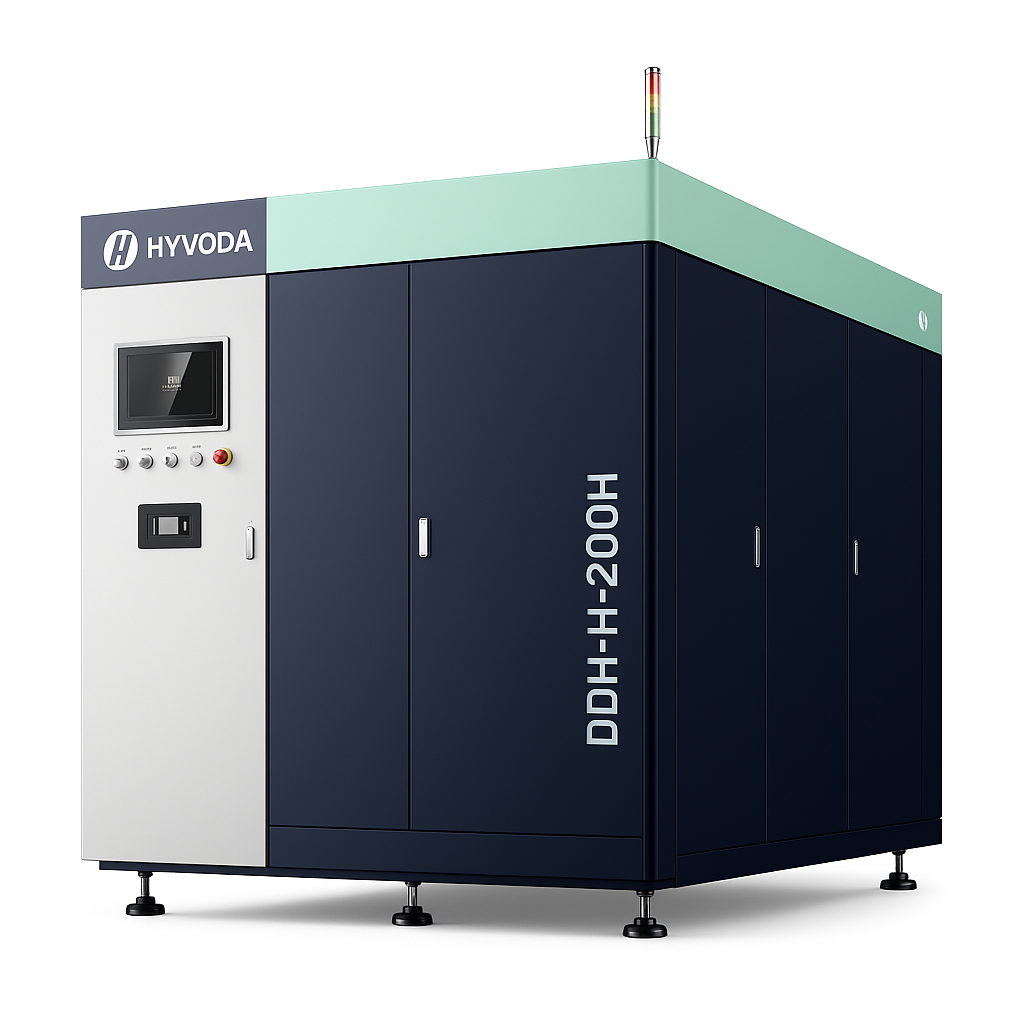

DDH-H series intelligent reducing gas generation system uses electric heating as the heat supply method. The reducing gas (mainly H₂ and CO) produced by it, after drying treatment, has a dew point lower than -35°C and can be used for the reduction protection of metal powders or products in reduction furnaces. This series of equipment has a low investment cost and a lower operating cost than conventional high-purity hydrogen equipment. The hydrogen production capacity range of a single DDH-H series device is 30 to 200 Nm³/h.

Request a quote

Features

HYVODA DDH-H Series is designed for efficient on-site production of reducing gas (mainly H₂ and CO) using methanol reforming and electric heating technology. The system delivers gas with a dew point below -35°C after drying treatment, ensuring stable performance for metal powder or product reduction in furnaces. Compared with conventional high-purity hydrogen equipment, it offers a significantly lower operating cost and faster ROI.

Applications

  • Metal powder reduction

  • Heat treatment in reducing atmosphere

  • Stainless steel manufacturing

  • Non-ferrous metal processing

Specifications

Model Gas Output (Nm³/h) Purity (vol%) Pressure (MPaG) Dew Point (°C) Lifespan (Years) Methanol Consumption (kg/h) Electricity Consumption (kWh) Size (L×W×H mm)
DDH-H-30 30 65–75 ≤0.9 ≥ -10 15 15 18 3100×2149×2350
DDH-H-70 70 65–75 ≤0.9 ≥ -10 15 35 42 3100×2149×2820
DDH-H-150 150 65–75 ≤0.9 ≥ -10 15 75 90 3100×2149×3020
DDH-H-200 200 65–75 ≤0.9 ≥ -10 15 100 120 3100×2149×3020

Advantages

  • Cost-effective operation – Operating cost lower than conventional high-purity hydrogen generators.

  • Compact & Integrated Design – Skid-mounted explosion-proof structure, easy to install and maintain.

  • Stable Output Quality – Dew point ≤ -35°C, consistent reducing atmosphere for sensitive processes.

  • Flexible Capacity – Range from 30 to 200 Nm³/h to meet various production scales.

  • Low Maintenance – Simplified design with fewer moving parts and long catalyst life.

Service

  • Complete system supply (production, purification, control, heating)

  • On-site installation & commissioning

  • Operator training & technical support

  • Remote monitoring and troubleshooting
